Name: UPS įtampos stabilizatorius Delock 62921 62921 4043619629213 RS-232, RS-232 male, juoda sp.
Brand: Delock
Price: 37.5 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

UPS įtampos stabilizatoriai

Prekės ženklas

Delock

Kolekcija

62921

Modelis

62921

Spalva

Juoda sp.

1-a kabelio jungtis

RS-232

2-a kabelio jungtis

RS-232 male

Privaloma garantija

24 mėn

Komplekte

1 x RS-232 į RS-232 izoliatorius

Papildoma informacija

Plug & Play, duomenų perdavimas: asinchroninis, visiškai dvipusis, duomenų perdavimo sparta nuo 300 iki 19200 bps, izoliacijos įtampa: 2500 VRMS arba 500 VDC, ESD apsauga ± 3 kV visuose signalo kontaktuose, duomenų linijos: TXD, RXD, RTS, CTS, GND

Pastebėjai klaidą prekės aprašyme, savybių lentelėje ar nuotraukų galerijoje? Pranešk mums

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

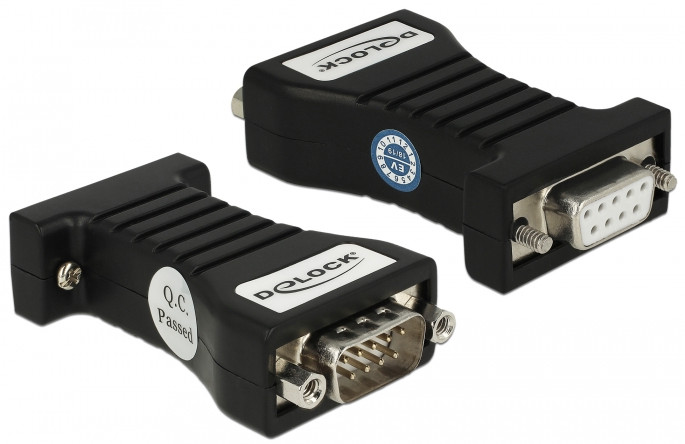

Delock Isolator 1 x Serial RS-232 DB9 female to 1 x Serial RS-232 DB9 male 3 kV - surge isolator

Description:
This RS-232 isolator by Delock protects all connected devices such as computers, machines, controllers, measuring devices, etc. against electromagnetic and electrostatic discharges as well as surge. Due to the complete galvanic isolation of the connected devices, a continuous data transmission is guaranteed even in the case of earth or ground loops. The isolator can be used as a coupling directly between two DB9 connections without an additional power supply.

Specification:
• Connectors:
1 x serial RS-232 DB9 female with screws
1 x serial RS-232 DB9 male with nuts
• Plug & Play
• Data transfer: asynchronous, full duplex
• Data transfer rate from 300 bps to 19200 bps
• Isolation Voltage: 2500 VRMS peak pulse or 500 VDC
• ±3 kV ESD protection on all signal pins
• Data lines: TXD, RXD, RTS, CTS, GND
• Housing material: plastic
• Colour: black
• Operating temperature: -40 °C ~ 80 °C
• Relative humidity: 5 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 63 x 33 x 17 mm
• Bus Power from RS-232: TXD, RTS or DTR
• No external power supply needed

System requirements:
• 1 x serial RS-232 DB9 female with screws
• 1 x serial RS-232 DB9 male with nuts

Package content:
• Isolator RS-232 to RS-232
