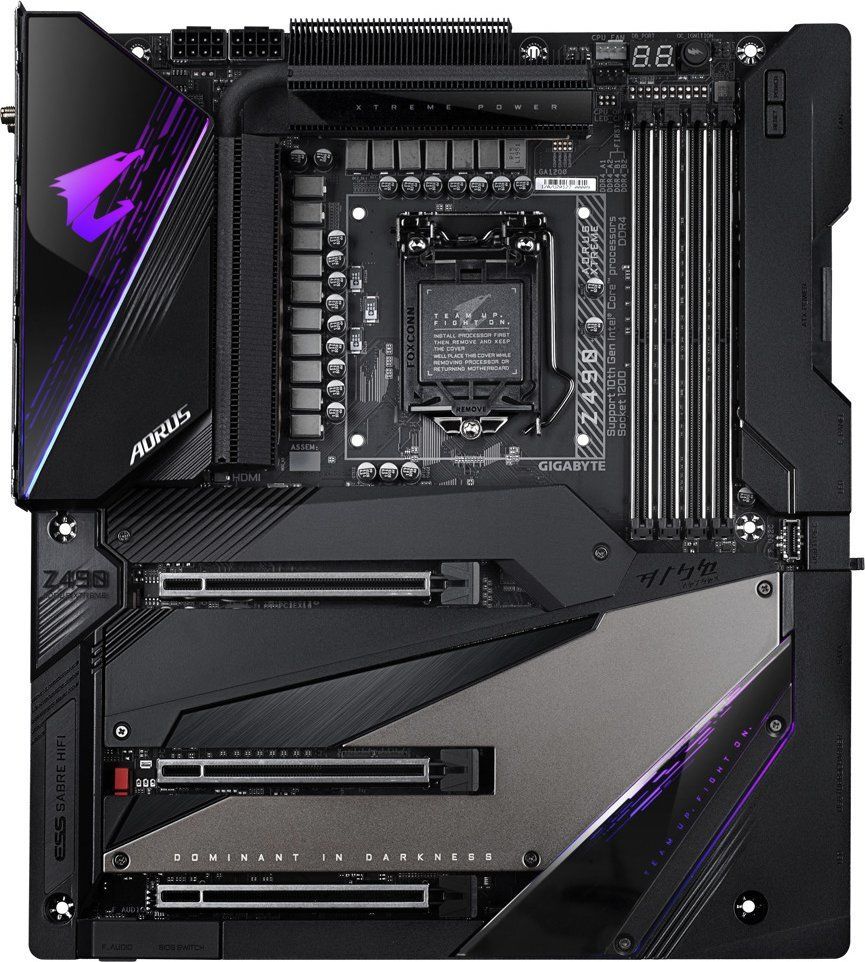

Name: Pagrindinė plokštė Gigabyte Z490 AORUS XTREME
Brand: Gigabyte
Price: 933.29 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

Gigabyte

Modelis

Z490 AORUS XTREME

Lustas (chipset)

Intel® Z490

Pagrindinės plokštės matmenys

Ilgis

271 mm

Plotis

305 mm

Plokštės dydis

E-ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1200

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR4

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

2800 MHz (O.C.), 4300+ MHz (O.C.), 4600+ MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Garso plokštės modelis

Realtek® ALC1220-VB

Tinklo plokštė

Aquantia 10G LAN

AMD CrossFire

Taip

nVidia SLI

Taip

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys

Išplėtimo lizdai

PCI Express 4X jungtys

PCI Express 16X jungtys

PCI jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

HDMI lizdų skaičius

Papildomai

Papildoma informacija

APP Center. @BIOS. EasyTune. Fast Boot. Game Boost. RGB Fusion. Smart Backup. System Information Viewer. USB TurboCharger. Q-Flash Plus. Q-Flash. Xpress Install

Pastebėjai klaidą prekės aprašyme, savybių lentelėje ar nuotraukų galerijoje? Pranešk mums

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

EXTREME POWER DESIGN To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME is a true beast among motherboards. 16 Phases Digital Power Design PowerArchitecture 2X Copper PCB 90A Smart Power Stage for Each vCore Phase High Current Capacity MOSFET Tantalum Polymer Capacitors Array Lower Temperatures Improved Transient Z490 AORUS XTREME motherboard uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1440A. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 10-core 10th Gen. Intel® Core™ processors. * Doubled from 8 phases with current balancing. Due to the lower resistance of the polymer materials, tantalum polymer caps generally have better ESR and ripple current specifications, as well as better performance at high frequency. THERMAL REACTIVE ARMOR Z490 AORUS XTREME uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. Thermal Design Fins-Array II & Direct-Touch Heatpipe II Right-Angled Connectors NanoCarbon Baseplate/Coating M.2 Thermal Guard II 8X Hybrid Fan Header UNPARALLELED PERFORMANCE Hungry for better performance? Z490 AORUS XTREME has a full PCIe 4.0 hardware design, supports high frequency memory, and comes with full SSD thermal guards to make sure you get the maximum full system performance. XTREME MEMORY XMP 5000+ PCIe 4.0 Hardware Design 3X PCIe 3.0 x4 M.2 XTREME MEMORY Z490 AORUS XTREME uses revolutionary "XTREME MEMORY" technology, which includes Shielded Memory Routing, SMT DIMM, and Tantalum Polymer Capacitors Array to minimize all noise and electrical interference and reach the highest memory clock. Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. NEXT GENERATION CONNECTIVITY A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z490 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed. 10 GbE LAN Intel® Thunderbolt™ 3 AQUANTIA® 10GbE BASE-T Networking Next Generation Multi-Gig Gaming The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers. Multi-Gigabit Support • Ultimate online gaming experience with faster connection speed• Backward compatible with 5/2.5/1Gbps network• No re-wiring needed ESSential USB DAC Complete Digital to Analog Signal processing on front-access USB Type-C ports gets rid of any possibility of distortions and provides superb sound stage recreation so users can experience the vocal cohesion. Enjoy the depth of the music and the immersive sound profile. USB Type-C for PC, Laptop and Android Devices Replace Ancient Front Audio Interfaces Powered by ESS SABRE HIFI DAC Premium Power Processing Left/Right Separation Routing Superior Sound Stage by WIMA Capacitors Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model. ULTRA DURABLE GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS XTREME and reinforce every slot to make each of them solid and durable. 3X PCIe Armor Ultra Durable™ PCIe Armor Industry Leading Ultra Durable™ PCIe Armor The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. GIGABYTE BIOS & APP CENTER Good software goes hand in hand with perfect hardware. Z490 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard
