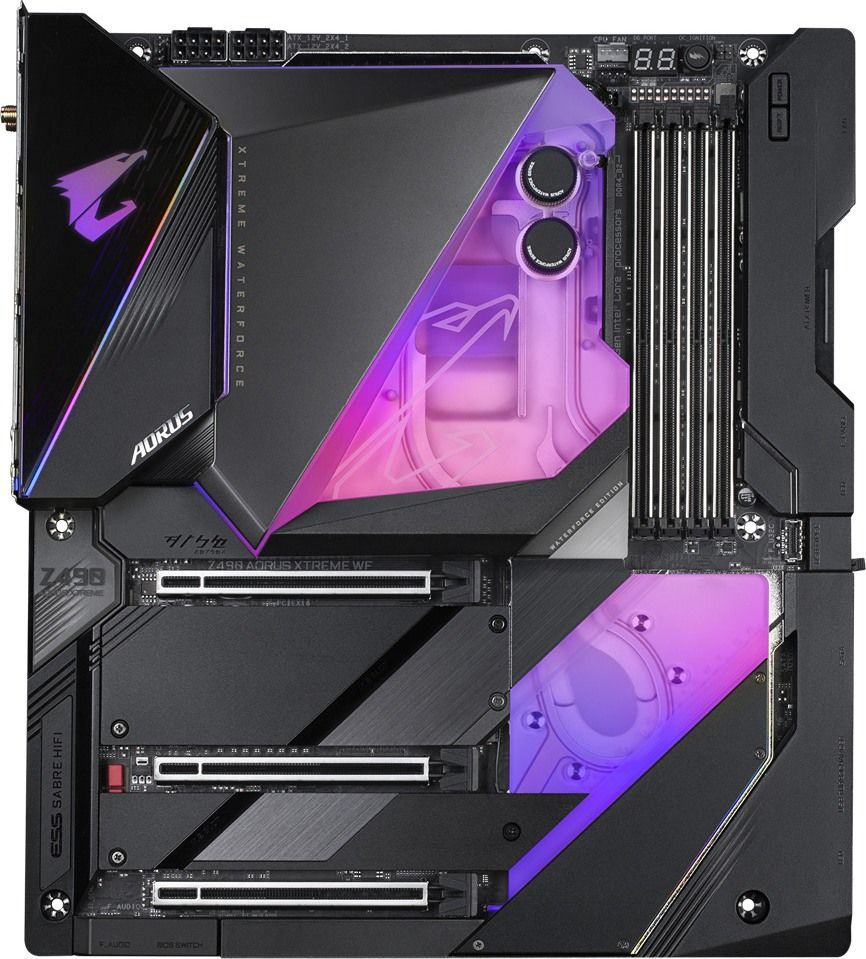

Name: Pagrindinė plokštė Gigabyte Z490 AORUS XTREME WATERFORCE
Brand: Gigabyte
Price: 719 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

Gigabyte

Modelis

Z490 AORUS XTREME WATERFORCE

Lustas (chipset)

Intel® Z490 Express

Pagrindinės plokštės matmenys

Ilgis

271 mm

Plotis

305 mm

Plokštės dydis

E-ATX

Procesorius

Procesoriaus tipas

Intel

Procesoriaus lizdo tipas

LGA 1200

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR4

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

2800 MHz (O.C.), 4300+ MHz (O.C.), 4600+ MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Garso plokštės modelis

Realtek® ALC1220-VB

Tinklo plokštė

Aquantia 10G LAN

AMD CrossFire

Taip

nVidia SLI

Taip

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys

Išplėtimo lizdai

PCI Express 16X jungtys

PCI jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

HDMI lizdų skaičius

Papildomai

Papildoma informacija

APP Center. @BIOS. EasyTune. Fast Boot. Game Boost. RGB Fusion. Smart Backup. System Information Viewer. USB TurboCharger. Q-Flash Plus. Q-Flash. Xpress Install

Pastebėjai klaidą prekės aprašyme, savybių lentelėje ar nuotraukų galerijoje? Pranešk mums

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

EXTREME THERMAL DESIGNZ490 AORUS XTREME WATERFORCE uses exclusive CPU/VRM/PCH watercooling monoblock to ensure stability and low temperature under full loading application and gaming.All-In-One Monoblock covers both CPU, VRM , SSD and PCH area60% more skived fins surface area for more efficient heat transferHigh density copper fins for extreme heat dissipationLeak detection circuit around whole monoblockHigh compatible universal G1/4 threadsAutomatically emergency shut down with leak detectionAddressable LED light effectAdopt high thermal conductivity thermal padSolid back-plate to prevent motherboard distortionEXTREME POWER DESIGNTo unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME WATERFORCE is a true beast among motherboards.Z490 AORUS XTREME WATERFORCE motherboard uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1440A. This 100% digital controller, new Tantalum Polymer Capacitors array, and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the new 10-core 10th Gen. Intel® Core™ processors.* Doubled from 8 phases with current balancing.Due to the lower resistance of the polymer materials, tantalum polymer caps generally have better ESR and ripple current specifications, as well as better performance at high frequency.XTREME MEMORYZ490 AORUS XTREME WATERFORCE uses revolutionary "XTREME MEMORY" technology, which includes Shielded Memory Routing, SMT DIMM, and Tantalum Polymer Capacitors Array to minimize all noise and electrical interference and reach the highest memory clock.AQUANTIA® 10GbE BASE-T NetworkingNext Generation Multi-Gig GamingThe AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.Multi-Gigabit Support• Ultimate online gaming experience with faster connection speed• Backward compatible with 5/2.5/1Gbps network• No re-wiring neededMulti-Zone Light Show DesignNow offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.ESSential USB DACComplete Digital to Analog Signal processing on front-access USB Type-C ports gets rid of any possibility of distortions and provides superb sound stage recreation so users can experience the vocal cohesion. Enjoy the depth of the music and the immersive sound profile.USB Type-C for PC, Laptop and Android DevicesReplace Ancient Front Audio InterfacesPowered by ESS SABRE HIFI DACPremium Power ProcessingLeft/Right Separation RoutingSuperior Sound Stage by WIMA CapacitorsUltra Durable™ PCIe ArmorIndustry Leading Ultra Durable™ PCIe ArmorThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. Z490 AORUS XTREME WATERFORCE bundled several useful and intuitive software to help users to control every aspect of motherboard.New User InterfaceAll new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.My FavoritesAdd constantly used items into the favorite menu for quick access.Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.
