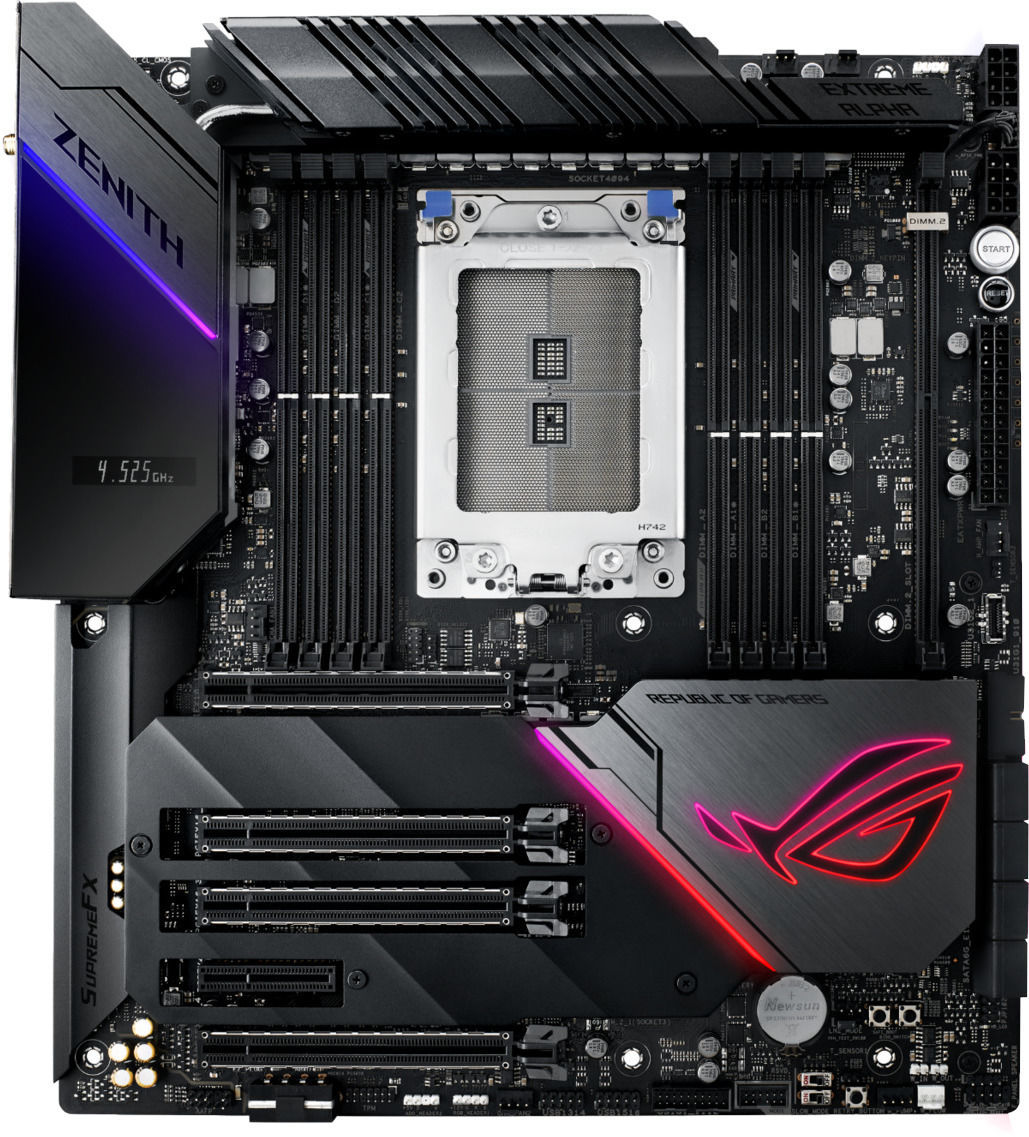

Pagrindinė plokštė Asus ROG Zenith Extreme ALPHA

Prekės ženklas

Asus

Modelis

ROG Zenith Extreme ALPHA

Lustas (chipset)

AMD® X399

Plotis

305 mm

Plokštės dydis

E-ATX

Procesoriaus lizdo tipas

TR4

Operatyviosios atminties tipas

DDR4

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.)

Tinklo plokštė

Aquantia AQC107

AMD CrossFire

Taip

nVidia SLI

Taip

PCI Express 16X jungtys

4

PCI jungtys

0

Papildoma informacija

1 x USB 3.1 Gen 2 Type-C jungtis. 3 x USB 3.1 Gen 2 Type-A jungtys. 8 x USB 3.1 Gen 1 jungtys. ReTry Button. Start Button. LN2 Mode. Extreme Engine Digi+ : - IR3555 PoweIRstage®. - MicroFine Alloy Chokes. - 10K Black Metallic Capacitors. ProbeIt. ROG Exclusive Software. - Mem Tweakit. - RAMCache III. - CPU-Z. - GameFirst V. - Sonic Studio III + Sonic Studio Link. - Sonic Radar III. ROG DIMM.2 module with heatsink. ROG Aluminum heatsink cover. 5-Way Optimization by Dual Intelligent Processors 5. - 5-way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power control, Fan Xpert 4, and Turbo app. LiveDash OLED. AURA : - Aura Lighting Control. - Aura RGB Strip Headers. - Aura Lighting Effects Synchronization with compatible ASUS ROG devices. - Aura Addressable Strip Header(s). ASUS Exclusive Features : - USB BIOS Flashback®. - AI Suite 3. - Ai Charger. - ASUS CrashFree BIOS 3. - Armoury Crate. - Pre-mounted I/O Shield. - ASUS NODE: hardware control interface. - OptiMem II. - ASUS EZ Flash 3. - ASUS C.P.R.(CPU Parameter Recall). - BUPDATER. - Clear CMOS Button. - Reset Button. ASUS Q-Design : - ASUS Q-Code. - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED). - ASUS Q-DIMM. - ASUS Q-Connector
