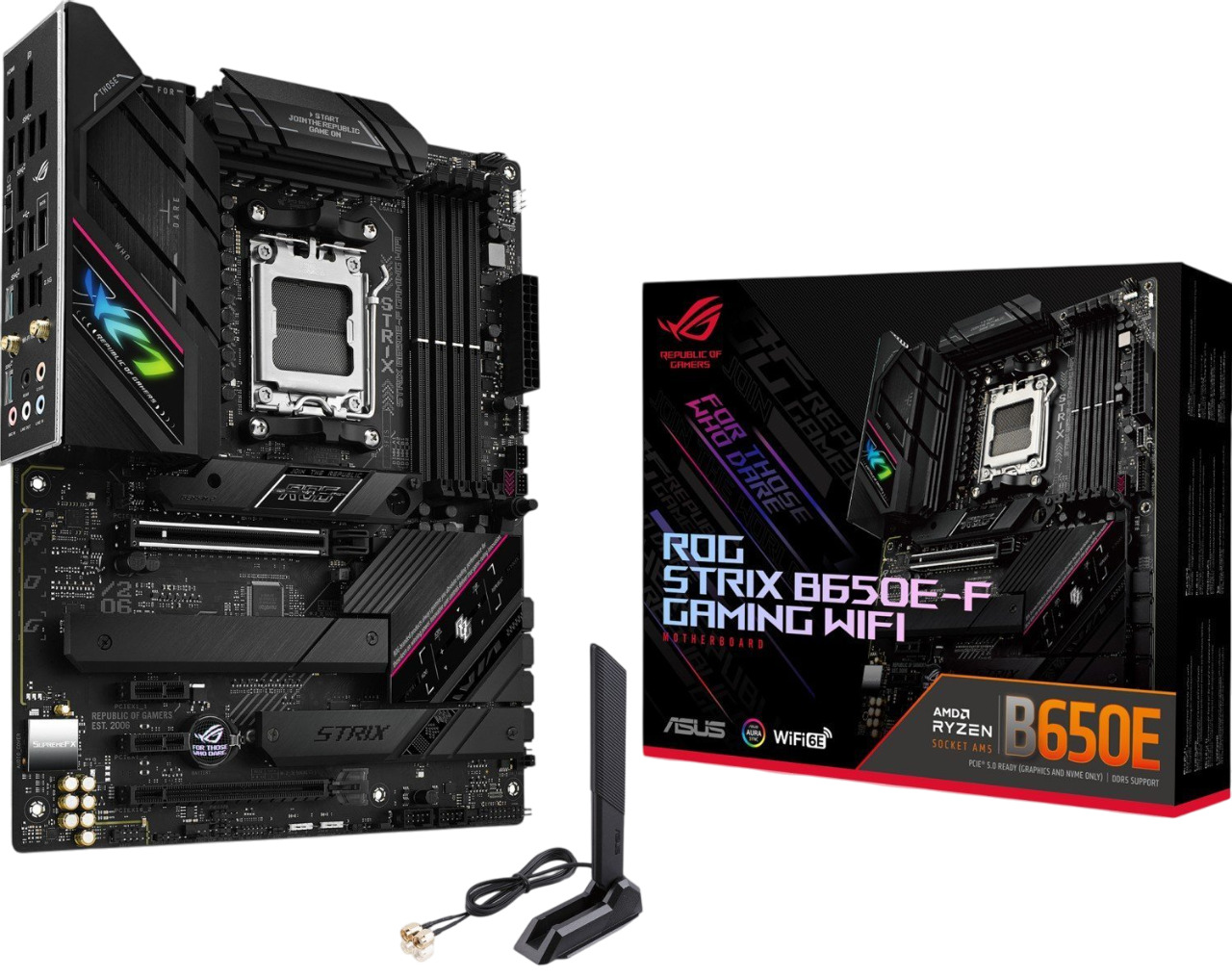

Name: Pagrindinė plokštė Asus ROG STRIX B650E-F GAMING WIFI
Brand: Asus
Price: 272.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Pagrindinės plokštės

Prekės ženklas

Asus

Modelis

ROG STRIX B650E-F GAMING WIFI

Lustas (chipset)

AMD® B650E

Pagrindinės plokštės matmenys

Ilgis

305 mm

Plotis

244 mm

Plokštės dydis

ATX

Procesorius

Procesoriaus tipas

AMD

Procesoriaus lizdo tipas

AM5

Procesoriaus lizdų skaičius

Operatyvioji atmintis

Operatyviosios atminties lizdų kiekis

Operatyviosios atminties tipas

DDR5

Maksimalus operatyviosios atminties kiekis (RAM)

128 GB

Operatyviosios atminties taktinis dažnis

4800 MHz, 5000 MHz, 5200 МHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)

Garsas, vaizdas ir tinklo plokštė

Vaizdo plokštės modelis

Garso plokštės modelis

SupremeFX ALC4080

Tinklo plokštė

Intel 2.5GbE 10/100/1000/2500 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Kietojo disko ir optinių įrenginių pajungimas

SATA 3 jungtys

M.2 lizdų skaičius

Išplėtimo lizdai

PCI Express 16X jungtys

Galimos galinės dalies jungtys

USB 2.0 jungčių skaičius

USB 3.x jungčių skaičius

Ethernet LAN (RJ-45) lizdas

Taip

HDMI lizdų skaičius

DisplayPort jungtys

Papildomai

Privaloma garantija

24 mėn

Garantija juridiniams asmenims

12 mėn

Pastebėjai klaidą prekės aprašyme, savybių lentelėje ar nuotraukų galerijoje? Pranešk mums

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

Asus ROG Strix B650E-F Gaming WiFi
This mean machine is the heart of your next hot rod. With blazing-fast PCIe 5.0 and WiFi 6E speeds, efficient cooling from built-in heatsinks, and an advanced power design designed for the Ryzen™ processors, the ROG Strix B650E-F leaves the competition in the dust.

PCIe 5.0
Take advantage of future-proof storage and GPU performance with PCIe 5.0 and two PCIe 4.0 M.2 connectors, all with durable heatsinks, plus a PCIe 5.0 x16 connector with SafeSlot for enhanced durability and Q-Release for easy upgrades.

Power section design
12 + 2 power stages, each rated at 80A, deliver enough current to easily handle AMD Ryzen™ 7000 Series processors under any load. Advanced chokes and durable capacitors are designed to withstand extreme temperatures, delivering performance that exceeds industry standards. A multi-layer PCB design quickly dissipates heat around the voltage regulators to improve overall system stability and give the processor more headroom for overclocking.

DDR5 memory
For those looking to push beyond standard DDR5 speeds, the Strix B650E-F is ready for enthusiast builds thanks to extensive support for AMD EXtended Profiles for Overclocking (EXPO). Experienced veterans can further improve performance with a wide range of settings in the UEFI.
ASUS Enhanced Memory Profile (AEMP) is a unique firmware feature for PMIC-constrained memory modules. AEMP automatically detects the memory chips in your build and then presents optimized profiles with higher frequencies and tighter timings that you can effortlessly apply to unleash performance.

Advanced cooling
Dual VRM heatsinks, one of which extends beneath the I/O shield, provide ample surface area and mass to meet the power demands of high-performance AMD Ryzen™ 7000 Series processors. High-quality thermal pads are incorporated between the power stages and the heatsinks, helping improve heat transfer and lower VRM operating temperatures. Heatsinks cover each slot, helping to keep the embedded NVME SSDs at optimal temperatures for consistent performance and reliability.

Communication
Built-in WiFi 6E technology leverages newly available spectrum in the 6 GHz band to deliver up to seven 160 MHz channels, delivering ultra-fast throughput and improved performance in dense wireless environments. Low-latency gaming, fast file transfers, and high-definition video streaming are just some of the many benefits of built-in Intel® 2.5 Gbps Ethernet.

Audio ROG SupremeFX
ROG SupremeFX is a unique combination of hardware and software technologies that deliver superior audio. The Strix B650E-F's implementation includes the ALC4080 codec for high-resolution playback up to 32-bit/384kHz on all channels. The front panel output is streamed through an integrated Savitech amplifier, which can deliver high-fidelity acoustics to a wide range of speakers and headsets.

Top quality ROG Strix
The bold and elegant ROG Strix B650E-E features a premium aesthetic similar to the Electro Punk series of peripherals. Black shrouds cover the SSDs and chipset with contrasting powder-coated and brushed metal textures, while playful pink accents draw the eye around the board. The I/O shroud is adorned with a split ROG eye image, the center of which can glow with a touch of customizable RGB.

Unique lighting
ROG Strix motherboards feature ASUS Aura technology, which enables complete lighting control and a variety of presets for both the built-in RGB LEDs and third-party accessories. Effects can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice for a seamless look across your build.
