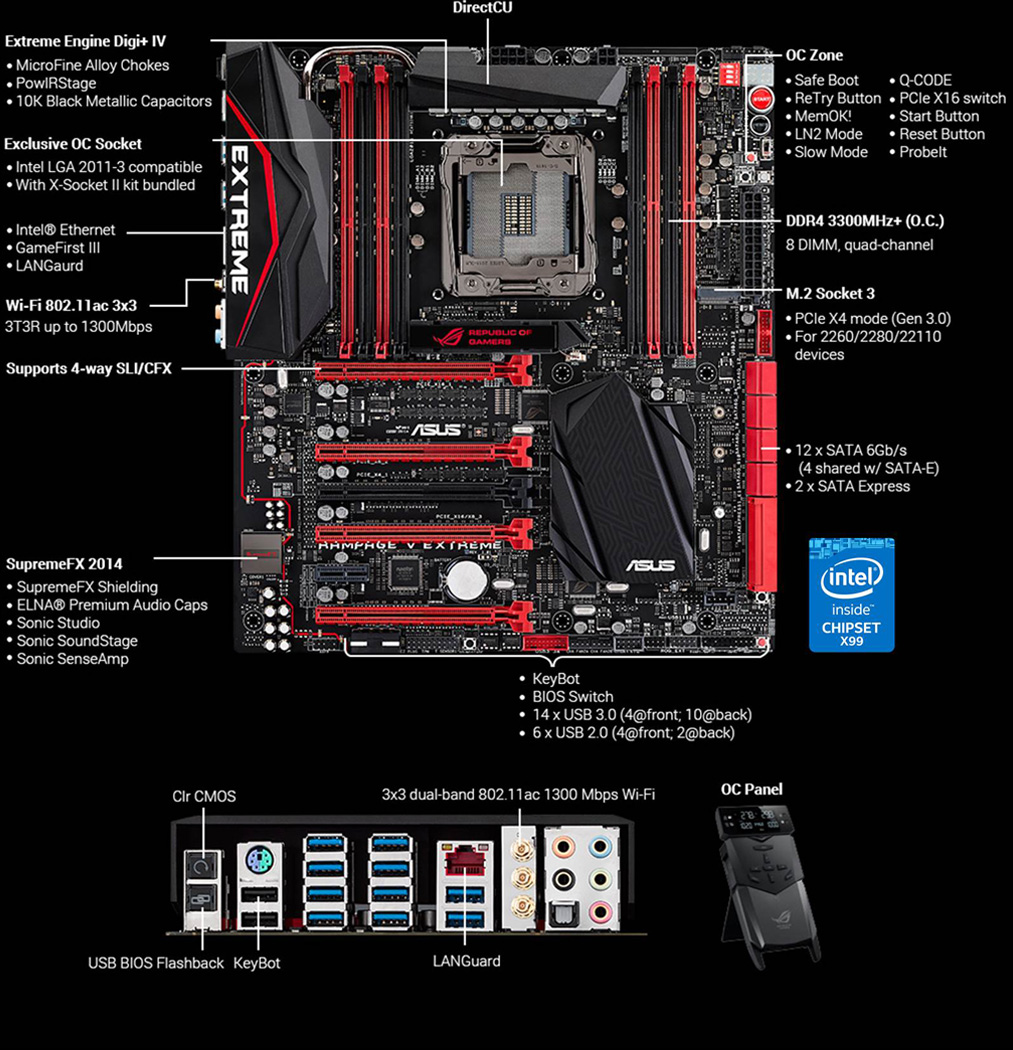

Pagrindinė plokštė Asus RAMPAGE V EXTREME/U3.1

Drive CPU and DDR4 performance beyond the limits!

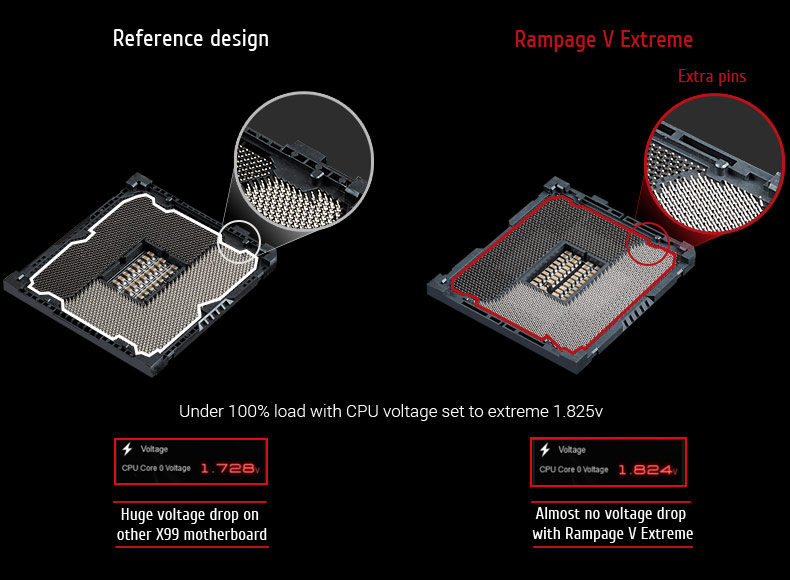

Designed to break performance barriers, ASUS OC Socket utilizes extra pins to connect a proprietary circuit to contacts found on Haswell-E's land grid array (LGA). Combined with our customized UEFI, this exclusive feature enables higher DDR4 memory frequencies, lower latencies and enhanced stability while overclocking, extending all the way to extreme overclocking conditions, such as Liquid Nitrogen (LN2). OC Socket is 100% compatible with new Haswell-E LGA 2011-v3 CPUs, ensuring the ideal combination of overclocking performance and compatibility.

Unique Cache Bus Voltage Adjustment
Cache bus links areas such as CPU cores, DDR4 Memory Controllers, System Agent and the shared L3 Cache. It is a critical interconnect for the whole CPU subsystem. Higher Cache Bus frequency directly gives faster total sub-system performance. ASUS OC Socket exclusively provides an adjustable cache bus voltage to reach higher cache bus frequencies.

Optimized for extreme overclocking

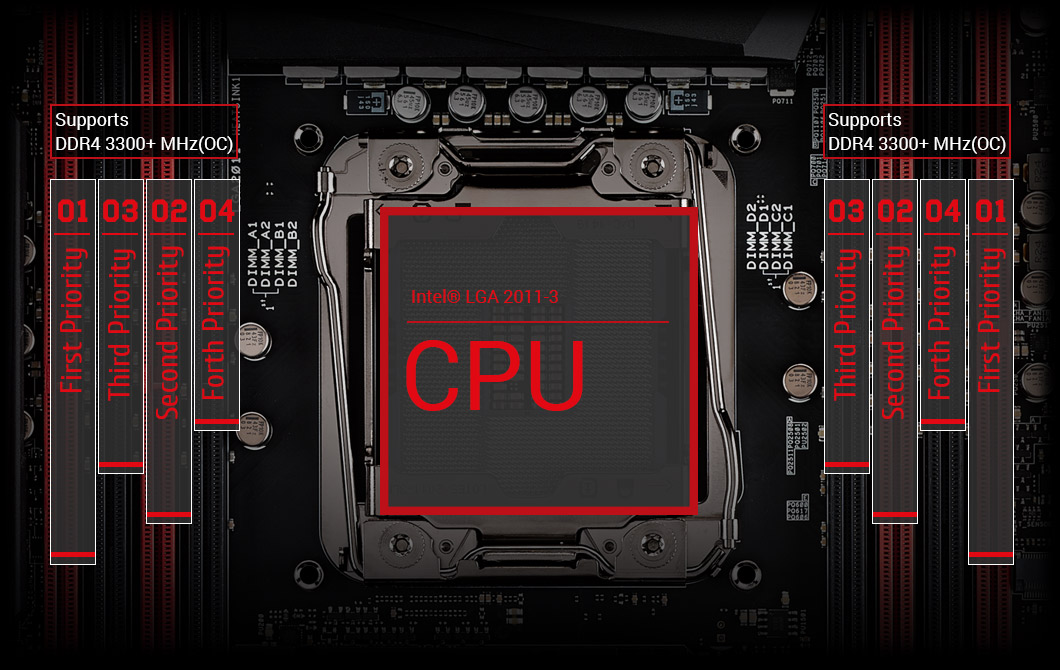

This is the first platform to support DDR4 memory, and it is capable of overclocking memory up to DDR4 3300+ MHz with all eight DIMMs fully loaded! ASUS-exclusive T-Topology circuit design plus patent-pending OC Socket unleash the full potential of DDR4 by minimizing crosstalk and signal reflections. Thanks to our expertise in motherboard layout design, signal timing issues are also greatly reduced, resulting in improved stability and overall performance. ASUS works with almost every DDR4 memory vendor to ensure the best compatibility – so you're assured reliable performance from your favorite brands.

Save more time, break more records
ROG understands overclockers better than any other manufacturer — so Rampage V Extreme includes all-new hardware-level Safe Boot and ReTry buttons to help put things right when overclocking adventures go wrong. They're quick, easy and real time-savers!

Pump up your power

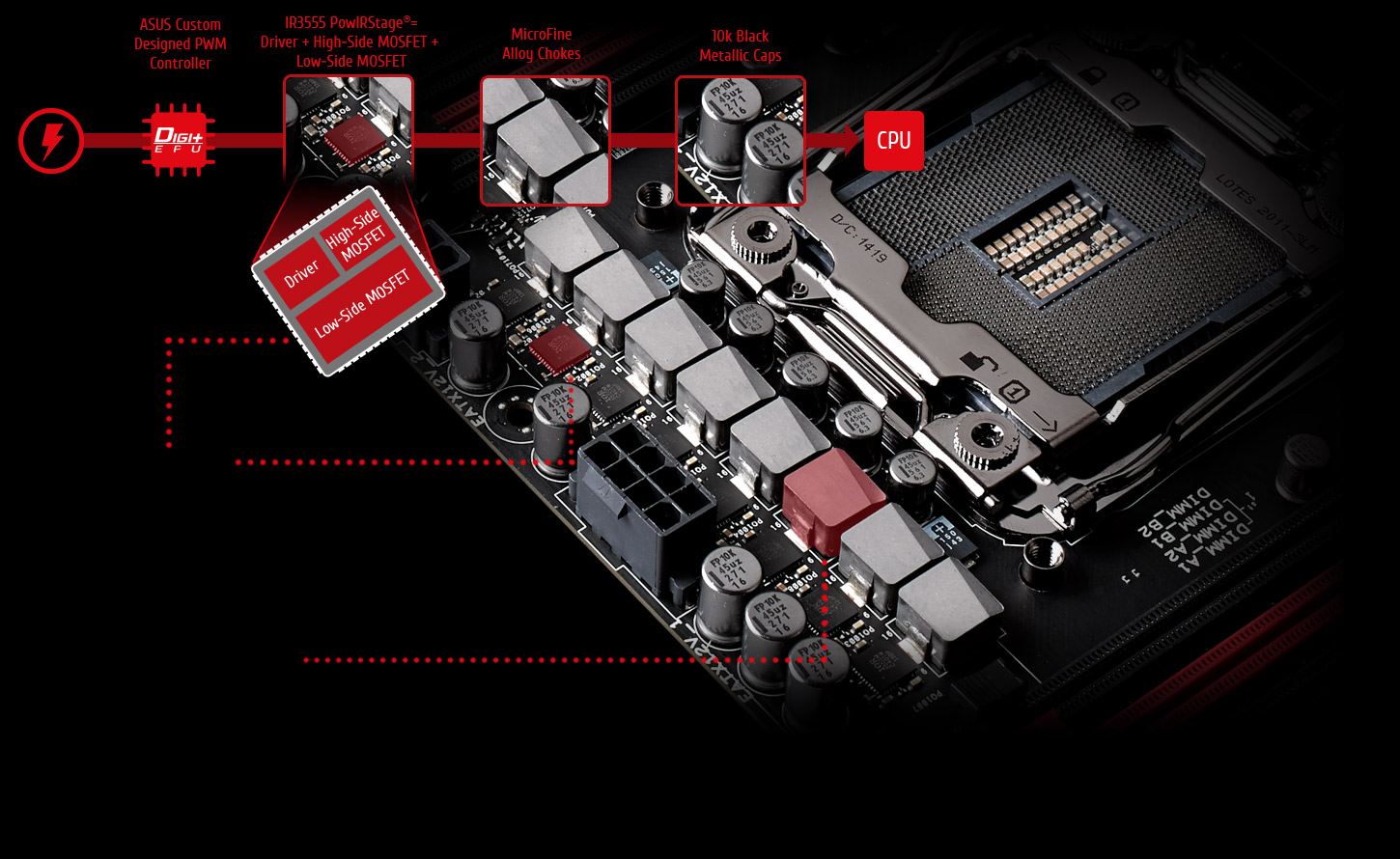

An extreme platform demands extreme control over the purest power, and nothing delivers more control or purer power than Extreme Engine Digi+ IV — Rampage V Extreme's exclusive voltage-regulator module (VRM).
MicroFine alloy chokes lower overall core loss for lower temperatures, while the VRM has been upgraded with the brand-new PowIRstage® IR3555. This chip integrates the driver, high-side and low-side MOSFETs and features the latest RDS On current-sensing technology.
Extreme Engine Digi+ IV's high-frequency pulse-width modulation (PWM) implementation scales to 1MHz allowing the DRAM VRM to achieve a 40% increase in stability!
