Maitinimo blokas In Win 600 W, 13.5 cm

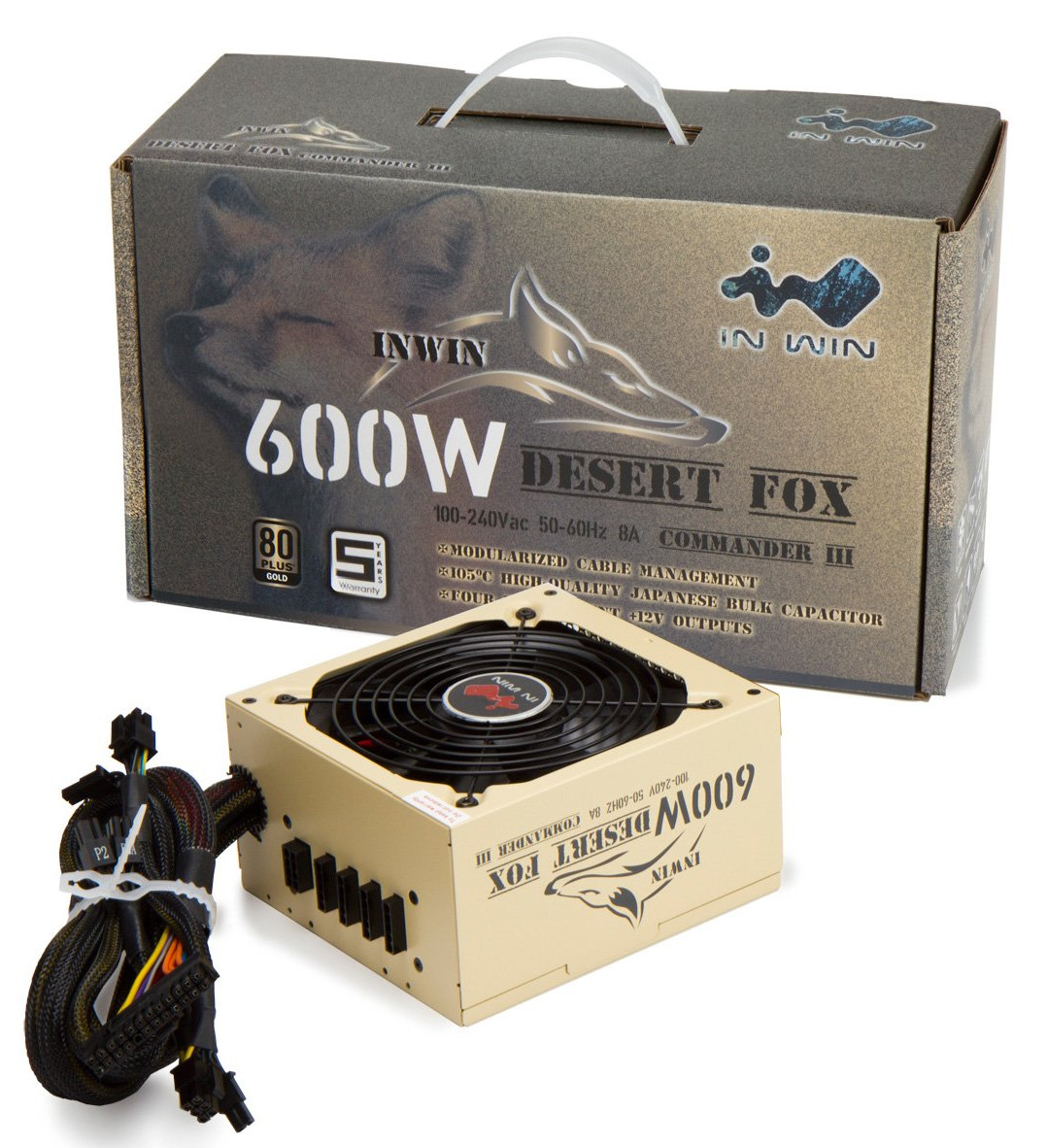

The "Commander" series by In Win has been characterized by special designs since its inception, which contrast nicely with the unity black of the competition and thus give the user the opportunity to build a visually very special computer or set accents. While the Commander II power supplies were still dark green, comes the Commander III according to its epithet "Desert Fox" in a sand-colored desert camouflage. On the side usually visible in the open computer or through the window, instead of the usual label with technical data, a fox drawing and the name of the power supply are printed, which is visually of course much more aesthetic. The series currently consists of three models,

However, it's not just the externalities that make the In-Win-Commander III series stand out from the competition - these power supplies also have a lot to offer inside. The components inside are of very high quality - 105 ° C capacitors from Japan and the PCB with a very high copper content are examples of this - and thus designed for high efficiency and reliability. Thus, the power adapter with a typical efficiency of 91.01 percent easily complies with the specifications of the 80 PLUS Gold standard and thus saves you money! Also in terms of PFC, the in-win power supply reaches a dream value of 99 percent reactive power reduction (Active PFC).

The reliability is very high with> 120,000 h MTBF, which is also recognizable by the very long manufacturer's warranty of five years. Not only the electronic components but also the large 135 mm fan with its double ball bearing contributes to the reliability and ensures an enormous delivery volume at low speed, resulting in a pleasantly low volume. Thanks to automatic regulation, the fan also adapts to the respective requirement so that only the minimum speed and volume are available at all times.

The 12 V power is split four times and supplies the hardware with 25 amps and 590 watts each. Thus, it is possible to retrieve almost the entire maximum power of the power supply over the 12V lines, which can be reliably supplied even under extremely high load and power hungry systems. Accordingly, in addition to the 20 + 4-pin and 4 + 4-pin plugs for the motherboard, the power supply also has four PCIe-6 + 2-pin connectors for supplying high-end graphics cards, as well as drives and peripherals with 9x SATA, 3x Molex and 1x floppy not too short. Most of the cables are removable, only the two motherboard connections and two PCIe cables are firmly connected to the power supply.

Technical specifications:

• Dimensions: 150 x 86 x 160 mm (W x H x D)
• Fan: 135 mm (ball bearing, automatic, load-dependent control)
• Efficiency: Ø 89.65%, max. 91.01% (50% load), incl. 80 PLUS Gold certificate
• Form factor: ATX12V 2.31
• Life expectancy: min. 120,000 h
• Active PFC (0.99)
• Power: 600 W
  + 3.3 V: 24 A
  +5 24 A
  3.3V + 5V: 120 W
  + 12V1: 25 A
  + 12V2: 25 A
  + 12V3: 25 A
  + 12V4: 25 A
  12V Total: 590 W
  - 12V: 0.3 A
  + 5Vsb: 3 A
  -12V +5 VSB: 18.6 W
• Connections:
  1x 20 + 4-pin ATX
  1x 4 + 4-pin ATX12V / EPS12V
  4x 6 + 2-pin PCIe
  9x SATA
  3x 4-pin Molex
  1x floppy
