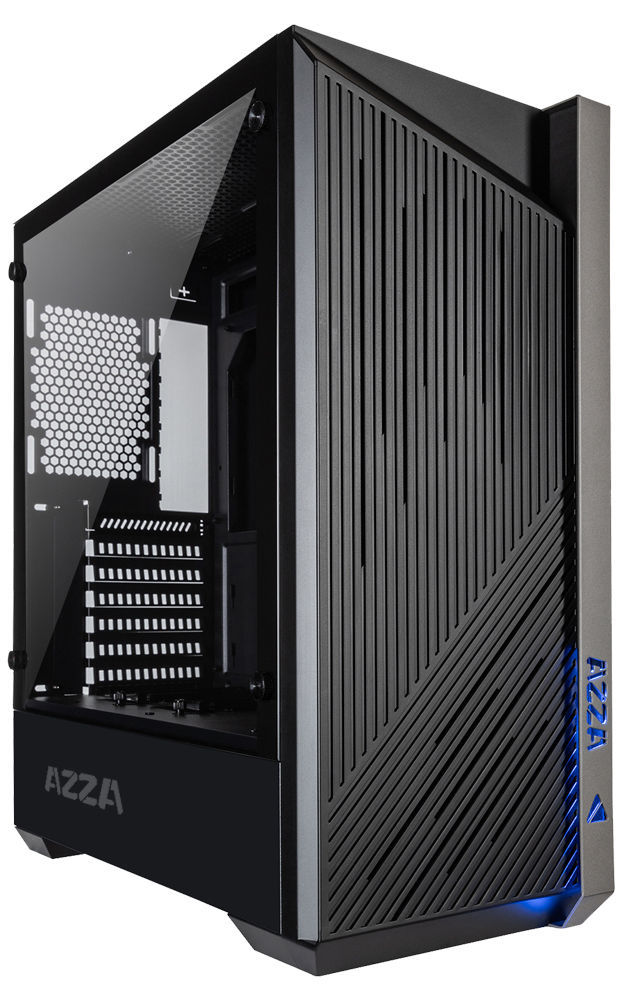

| Model Name |
RAVEN 420 |
| Model Number |
CSAZ-420DF1 /CSAZ-420LF/ CSAZ-420F / CSAZ-420 |
| Specifications |
|
| Type |
ATX Mid Tower |
| Color |
Black (exterior)/Black (interior) |
| Side Panel Window |
Left Side panel: Tempered Glass with rubber mounts |
| Max CPU Cooler Height |
Up to 155mm |
| Max video Card Length |
Up to 370mm long video card |
| Power Supply |
Not Included |
| Motherboard Compatibility |
ATX、Micro ATX |
| Expansion |
|
| External 5.25" Drive Bays: |
0 |
| Internal 2.5" Drive Bays |
Up to 6 |
| Internal 3.5" Drive Bays |
Up to 2 |
| Expansion slots |
7 |
| Top Ports |
Power button, reset button, HD Audio, USB 3.0 x 2 |
| Physical Specifications |
|
| Case Dimension (HxWxD) |
480x205x425mm/ 18.9x8.1x16.7 inches |
| Weight |
6kg /13.2lbs |
| Features |
|
| Tempered Glass Sides Window |
High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects(CSAZ-DF1 only) |
Addressable RGB light fan in the rear. All Addressable RGB light devices sync with the motherboard, allowing the motherboard software to directly control the lighting. |
| Available Fan Ports |
3x120mm or 2x140mm Fan ports in the front |
| |
2x120mm or 2x140mm Fan ports on the top |
| |
1x120mm Fan port in the rear |
| The available fan included |
CSAZ-420DF1:Digital RGB fan |
| |
CSAZ-420LF:LED Fan |
| |
CSAZ-420F:Front - 1 x Black fan ; Rear - 1 x Black fan |
| |
CSAZ-420 :Case only |
| Water Cooling |
Supports radiators up to 240mm in the Front |
| |
Supports radiators up to 240mm on the Top |
| Dust filters |
Removable (magnetic) dustproof net on the top, iron net on bottom of chassis. |
| Power Supply Support |
Bottom mounted ATX Power Supply |
