Name: Jungtis Singularity Computers SC Protium D5 Pump Top Frosted Acrylic, balta sp.
Brand: Singularity Computers
Price: 77.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Jungtys

Prekės ženklas

Singularity Computers

Modelis

SC Protium D5 Pump Top Frosted Acrylic

Skirta naudoti

Aušinimo sistemai

Spalva

Balta sp.

Vienetai pakuotėje

Pastebėjai klaidą prekės aprašyme, savybių lentelėje ar nuotraukų galerijoje? Pranešk mums

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

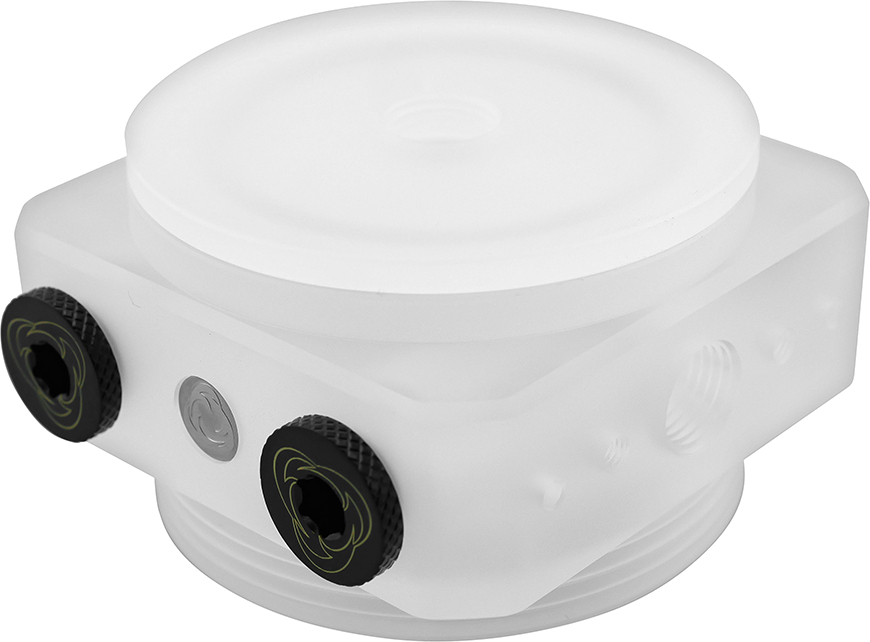

The Protium D5 Pump Top is now up to revision 43 after many years of development and perfecting the design. It has 3 inlets and 1 outlet to increase loop routing options. The ports face at 90 degrees on all sides but one which allows for the cleanest tube routes. The ports are all far enough apart so that the largest fittings can be used. It can be mounted facing three different directions with direct to radiator mounting using our Universal Back Plate (available separately). It has a unique lid design with a top thread which allows the pump top to be used on its own, or for a reservoir to be attached directly. The internal design is flow optimized with a machined spiral and extremely close impeller tolerance for maximum performance. The Protium D5 Pump top options include the famous Singularity Computers crystal-clear Polished Acrylic, Frosted Acrylic and Acetal. The Singularity Computers Surface Protection Features gives our products maximum chemical resistance and lifespan.

Specifications & Included Items:

Protium D5 Pump Top: Cast Acrylic, CNC Machined, Frosted, Surface Treated. x1.
Protium D5 Pump Top Lid: Cast Acrylic, CNC Machined, Frosted, Surface Treated. x1.
SC Stop Fittings: Brass, CNC Machined, Powder coated, Black, Laser Etched. X3.
O-Rings Silicone White 70 Durometer: Protium Reservoir O-Ring x1. Protium D5 O-Ring. x1.
O-Rings Buna 50 Black: Stop Fitting O-Rings. x3.
Fasteners Stainless Steel: M4 8mm Countersunk Hex. X2.
Stand Offs Brass: M4 6mm. x2.
Dimensions: Pump top: H46mm x W76mm x L78mm (D5 Top Lid included)
