Name: Jungiklis Rademacher 5665-UW, 230 V
Brand: Rademacher
Price: 130.9 EUR
Availability: OutOfStock

Prekės informacija

Bendrosios charakteristikos

Prekės tipas

Jungiklis

Prekės ženklas

Rademacher

Kolekcija

Modelis

5665-UW

Plotis

50 mm

Gylis

50 mm

Aukštis

12 mm

Palaikomos atminties kortelės

Sąsaja

Nėra

Montavimas

Įstatomas į sieną

Įtampa

230 V

Valdymas per išmanųjį įrenginį

Taip

Naktinis matymas

Suderinami gamintojai

Visi

Privaloma garantija

24 mėn

Papildoma informacija

Perjungimo pajėgumas: maks. 8 A varžinė apkrova, Maks. 4 A indukcinė apkrova

Pastebėjai klaidą prekės aprašyme, savybių lentelėje ar nuotraukų galerijoje? Pranešk mums

Prekės atspalvis gali skirtis nuo matomo nuotraukoje.

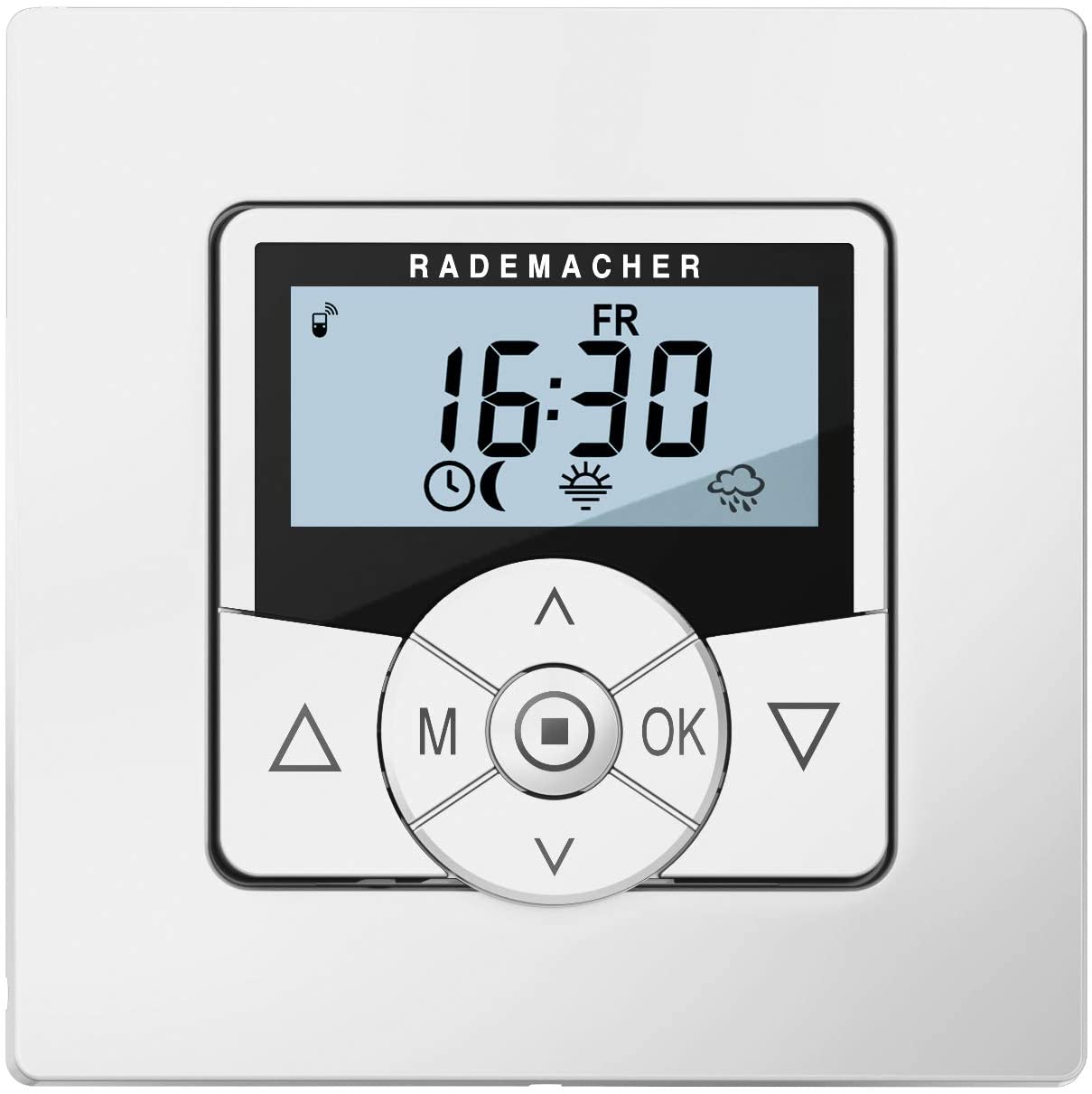

Comfort DuoFern 5665-UW, time switch

The Rademacher Troll Comfort DuoFern is the radio-capable time switch for roller shutters. Connected to an electric roller shutter drive, the Troll Comfort DuoFern is used to control and automate the roller shutters. Thanks to the integrated radio interface, the roller shutters can also be operated remotely. This radio timer is a real eye-catcher with its modern design, a large illuminated display, piano lacquer finish and intuitive 5-way navigation! In addition to extensive automatic functions, such as a daily/weekly/astro or random program, the Troll Comfort DuoFern also offers a simple installation wizard. This guides you through the basic settings during initial commissioning and enables switching times to be set up quickly. The changeover of the roller shutter time switch to summer and winter time is fully automatic. In addition, the wireless timer has an integrated blocking detection for mechanical tubular motors - this protects frozen roller shutters from damage. With the sun and twilight sensor available as an accessory, sun and twilight control is also possible. Thanks to the design in accordance with DIN 49075, the time switch can be integrated into all common switch ranges via intermediate frames.

Type: Timer

Color white

EAN code: 4031909018922

Manufacturer part number: 36500572

Smart home: DuoFern

Device Properties: Annotation | Switching capacity: Max. 8 A resistive load, Max. 4 A inductive load

Device Properties: Device Type | home automation

Device Properties: Device Type | control unit

Device Properties: Assembly | Installation depth 32 mm

Device Properties: Power Supply | 230 V, 50/60 Hz, stand-by consumption:

Operation: function keys

Additional information: Protection class: II; Degree of protection: IP30; Transmission frequency: 434.5MHz; Transmission power: Max. 10 mW; External inputs: 2; Connection cross-section: Max. 1.5 mm2; Power reserve: 8 hours (permanent data storage); Range: approx. 100 m outdoors, approx. 30 m indoors (depending on the building structure); DuoFern devices: Max. 20; Operating temperature: 0 - 40 °C

Accessories: available | Cover frame, installation housing, spacer, instruction manual

Dimensions: Width: 50mm x Height: 12mm x Depth/Length: 50mm
